Customized 470μH I-shaped Power Inductor with Vertical Direct Insertion for Compact PCB Design

Marchio: ZXY
Numero di modello: ZXY-10*16
MOQ: Negoziabile
prezzo: Negoziabile
Dettagli dell' imballaggio: Cartone
Informazione dettagliata
Descrizione del prodotto
Informazione dettagliata
Luogo di origine:
Shenzhen Guangdong
Certificazione:
RoHS、ISO9001、CE
Evidenziare:

470μH I-shaped Inductor

,

Vertical Direct Insertion Power Inductor

,

Compact Design Vertical Inductor

Descrizione del prodotto
Customized I-shaped Inductor 10 × 16-470μH Direct Insertion Vertical Power Inductor
This customized 10 × 16mm vertical I-shaped power inductor features a direct insertion structure, delivering a high inductance value of up to 470μH. The I-shaped magnetic core design optimizes magnetic circuit efficiency, balancing excellent DC superposition characteristics with lower core losses. The vertical installation method effectively conserves PCB board area, making it ideal for high-density power supply layouts. Widely used in DC-DC converters, power filters, energy storage, and various high-current power circuits, this component enhances power supply stability and efficiency.
Key Features
  • High sensitivity and compact design: Achieves up to 470μH inductance within a compact 10mm diameter × 16mm height footprint, ideal for high-power density power supply designs.
  • Vertical direct insertion structure: Vertical installation with through-hole pins ensures secure soldering, strong mechanical stress resistance, and optimized PCB layout space.
  • Excellent power and stability: I-shaped magnetic core provides anti-saturation characteristics, maintaining high efficiency and stability in high-current applications like power conversion and filtering.
  • High reliability: Robust magnetic core and enameled wire winding ensure long-term reliability and extended service life in demanding environments including high temperature and vibration.
Performance Characteristics
Feature Description / Performance
High Inductance Value Offers a high inductance of 470μH within a compact footprint, suitable for low-frequency filtering and energy storage.
Compact Vertical Design Dimensions of 10mm (Diameter) × 16mm (Height). The vertical (I-shaped) through-hole mounting saves significant PCB board area.
High Current Capability Designed to handle relatively high DC bias currents with minimal performance degradation.
Excellent DC Bias Characteristics I-shaped core structure provides good anti-saturation characteristics, maintaining inductance stability under substantial DC current.
Low Core Loss Utilizes high-performance magnetic materials, resulting in low iron loss and hysteresis loss at typical switching frequencies.
High Reliability & Stability Robust construction with enameled wire windings ensures stable performance and long service life under demanding conditions (e.g., temperature, vibration).
Easy Assembly Standard through-hole (DIP) pins facilitate easy manual or wave soldering, offering strong mechanical attachment.

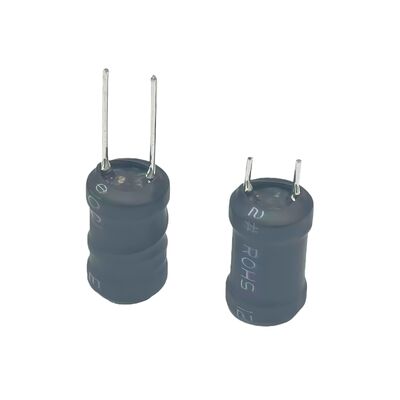

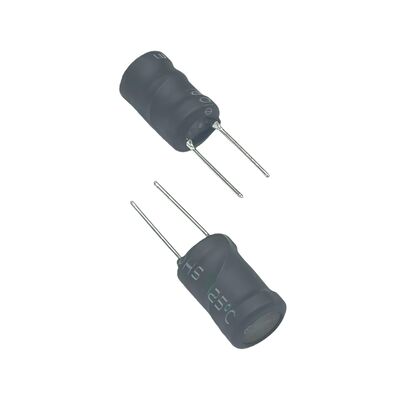

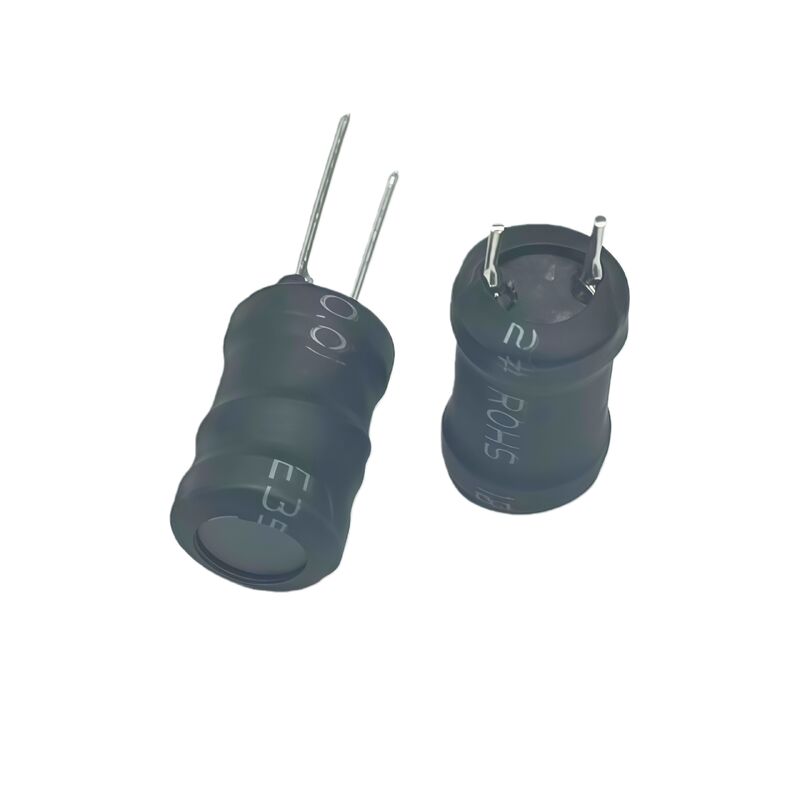

Product Images
Customized 470μH I-shaped Power Inductor with Vertical Direct Insertion for Compact PCB Design 0
Customized 470μH I-shaped Power Inductor with Vertical Direct Insertion for Compact PCB Design 1
Customized 470μH I-shaped Power Inductor with Vertical Direct Insertion for Compact PCB Design 2
Customized 470μH I-shaped Power Inductor with Vertical Direct Insertion for Compact PCB Design 3
