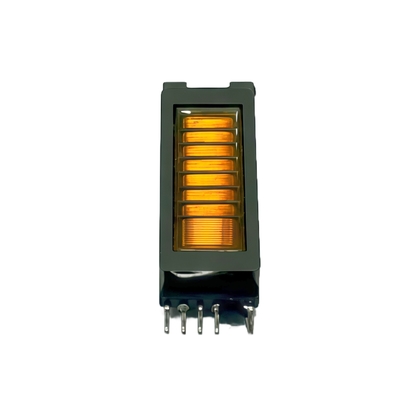

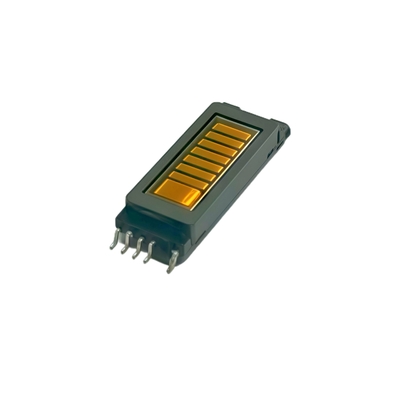

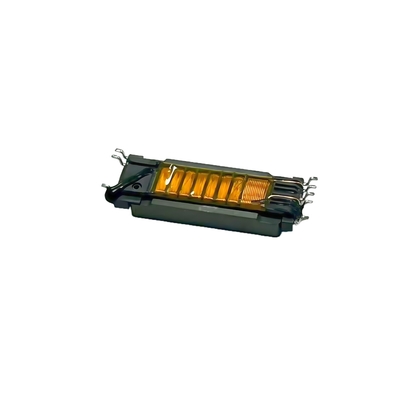

ED8*16 Audio Transformers SMD Shielded Audio Isolation Transformer 600:600 1:1

Marchio:	ZXY
Numero di modello:	ZXY-ED8
MOQ:	Negoziabile
prezzo:	Negoziabile
Dettagli dell' imballaggio:	Cartone
Condizioni di pagamento:	T/t

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Huizhou.China

Certificazione:

RoHS、ISO9001、CE

nome:

Trasformatore ED8

Tipo di trasformatore:

Audio trasformatore

Caratteristica:

Isolamento audio

Induttanza:

1,2h 2h 3h

Rapporto di curva:

600:600 1:1

Pacchetto:

Personalizzare

Descrizione del prodotto

**ED8*16 Audio Transformers SMD Shielded Audio Isolation Transformer 600:600 1:1**

1.Product Description

ED8 * 16 is a 600 Ω: 600 Ω audio isolation transformer that uses surface mount (SMD) technology and comes with a shielding cover. With its compact ED type magnetic core structure, it can effectively suppress common mode noise and eliminate ground loop interference, while providing high-quality 1:1 signal transmission. It is widely used in communication equipment, professional audio interfaces, and industrial automation systems to achieve signal isolation and fidelity.

**Core feature analysis:**
*ED8 * 16: refers to the type and size of the magnetic core used in the transformer (usually around 8x8x6mm), which determines its physical size and some electrical characteristics.

*SMD: Surface mount technology, suitable for automated production, saves circuit board space.

*Shielded: Metal shielding covers can effectively prevent electromagnetic interference (EMI) and ensure signal purity.

*Audio Isolation Transformer: Its core function is to transmit signals through magnetic coupling, achieve electrical isolation, and disconnect ground circuits.

*600:600 1:1: The input and output impedances are both 600 ohms, and the voltage conversion ratio is 1:1, which means it does not amplify or attenuate the signal voltage. It is mainly used for isolation and impedance matching.

2.Performance Characteristics

Feature	Specification / Description	Notes / Benefit
Model Series	ED8*16	Compact SMD form factor family.
Type	Audio Isolation Transformer	Provides galvanic isolation between input and output.
Impedance Ratio	600Ω : 600Ω	Ideal for standard audio line-level impedance matching.
Turns Ratio	1:1	Output voltage is equal to input voltage (neglecting losses).
Inductance (Primary)	1.2H, 2H, or 3H (typical)	Select based on desired low-frequency response. Higher H = less low-end loss.
Shielding	Integrated Magnetic Shield	Excellent for suppressing EMI/RFI noise and preventing crosstalk.
Mounting Type	Surface Mount (SMD/SMT)	Designed for automated PCB assembly, saving space and cost.
Frequency Response	Typically ~300Hz - 100kHz (Depends on specific model & load)	Covers the entire audio band and beyond with minimal distortion.
Primary Function	Eliminate ground loops, block DC, reject common-mode noise.	Solves hum, buzz, and protects equipment from voltage transients.
Typical Applications	Consumer audio, professional audio gear, communication systems, DAQ, industrial controls.	Used anywhere clean audio signal isolation is required.
Key Advantage	High cost-effectiveness and reliability in a miniaturized package.	Provides professional-grade isolation for consumer-level production costs.

3.Other Recommended Produtcs

ED8*16 Audio Transformers SMD Shielded Audio Isolation Transformer 600:600 1:1 5
